Product Description

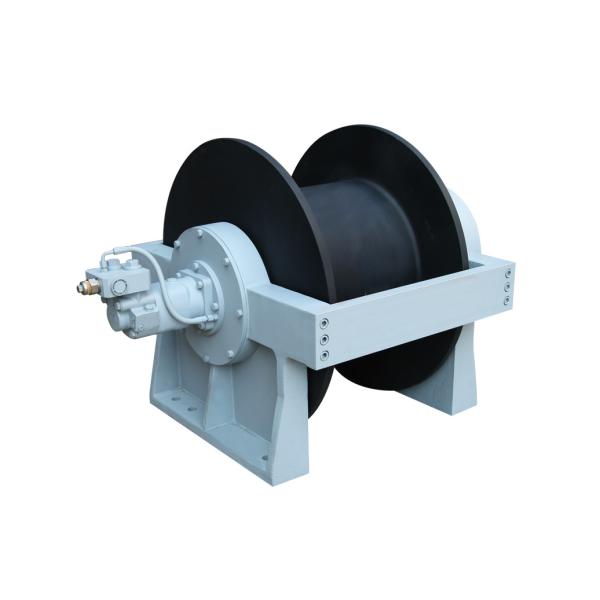

Marine winch Hydraulic traction winch free fall 12.5 ton for ship
pulling heavy object
YJA125 hydraulic winch is installed in a variety of ships. The oil
pump, driven by the engine, pumps the high-pressure oil into the
hydraulic motor through the directional value and balancing value.
The hydraulic motor drives the reel through the planetary gear
reducer in two stages to reduce speed. The reel winds the steel
wire rope to pull heavy object.
YJA125 hydraulic winch is composed of planetary gear reducer,
brake, reel, hydraulic motor and other components. Equppied with
floating planetary gear reducer, the winch runs smoothly and the
structure is strong. The multi-plate friction brake has large brake
torque, is safe and reliable. Therefore, the winch is featured with
small size, compact structure and high trans-mission efficiency.
Contact us for more details!
Performance
| Rated line pull (1st layer) | KN/Kgs / lbs | 125/12500/27260 |
| Line speed (1st layer) | m/min | >15 |
| Transmission ratio | i | 53.272 |
| Oil pressure | MPa / Bar | 18/ 180 |
| Oil flow | L/min | 160 |
| Drum diameter x Bottom diameter x Length(internal) | mm | 850*520*450 |
| Drum capacity | m | 100 |
| Suggested high-intensity wire rope diameter | mm | Φ32 |
| Wire rope layers | | 4 |
Product structural drawing
Features
- Full-float typed planetary gear reducer makes the operation more
stable, the structure more reasonable.
- Adopt multidisc-typed friction normally-closed brake makes the
brake torque larger, safer and more reliable.
- The product is featured by its small size, compact construction and
high transmission efficiency.
- Free spooling function.
- Adopt high efficiently hydraulic motor with long use life.
- The installation bracket can be manufactured according to the
customer's requirement.
- According to the requirement of customers, manufacture the balance
valve and shuffle valve special for this winch.
- Adopt manual, or pneumatic clutch.
Application
We can customize various spec as your request.
Ideal for ues in a variety of engineering requipment and ship board
equipment, such as tow truck, trailer, tractor, Bulldozer, Crawler
truck, and more.
Packing & Shippment
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group.
They can work out customized design according to your special
requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance
payment. The specific delivery time depends on your purchase
quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could
recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working
condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
We will always be your service, welcome for your enquiry!
